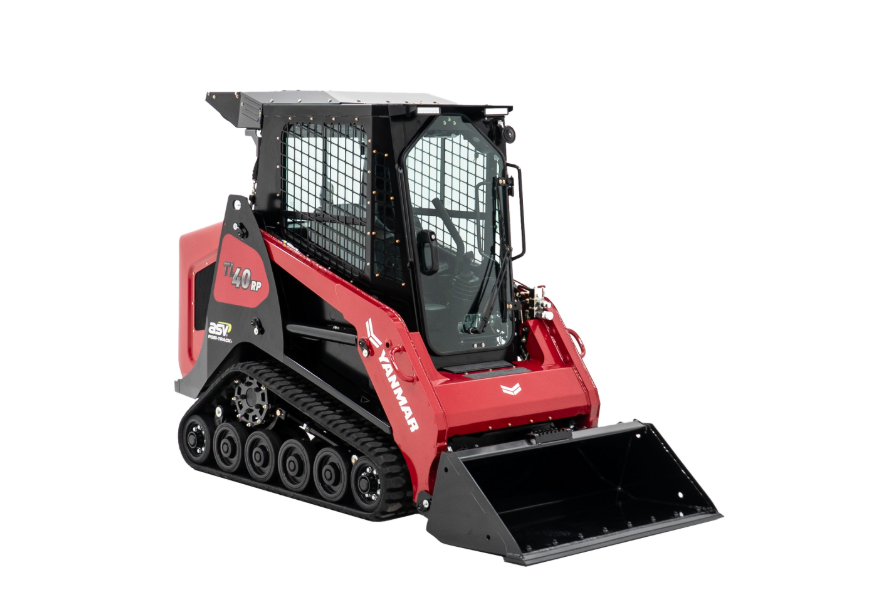

Compact Track Loader TL40RP
Greater Capability Without Compromising Compact Design
Introducing the TL40RP, the compact track loader that steps up where it counts. Designed around a nimble 48″ footprint, it delivers increased power, capacity, and auxiliary performance, taking on a wider range of demanding applications without giving up the maneuverability and transportability contractors depend on. With ASV Posi-Track® undercarriage technology and an available all-weather cab, it’s built for any job, any season.
More Power. No Compromises.
-
Built Around the Operator
Step into the TL40RP and stay there. The seated operator station eliminates all-day standing fatigue and shields you from the elements. Upgrade to the Premium configuration for a mechanical suspension seat, roof panel, and sound insulation, or opt for the available all-weather cab for year-round comfort. Large windows keep you aware of your surroundings from the first hour to the last.
-
Built to Perform, Easy to Maintain
A turbocharged Yanmar diesel engine produces 38.2-horsepower and 93.6-foot pounds of peak torque. With a 930-pound rated operating capacity and 2,480-pounds of breakout force, it’s built to push, dig, and move material confidently across the most demanding jobsites, job after job, season after season. When maintenance time comes, a rear-tilting hood opens to all major service points, reducing downtime and keeping the machine in the field.
-
Intuitive Control for Every Task
Pilot operated hydraulic joysticks manage loader and drive functions independently, with auxiliary variable flow available via joystick buttons or continuous console switch. The hand-operated rotary throttle gives precise engine speed management, and the 4.3-inch color display puts key machine data right in front of you.
Specifications
Operating Specifications
- Loader Arms
- Radial
- Radial
- Operating Weight (Open ROPS)
- 4,030 lbs
- 1,828 kg
- Operating Weight (Enclosed Cab)
- 4,355 lbs
- 1,975 kg
- Ground Pressure at Operating Weight
- 3.3 psi
- 22.75 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 930 lbs
- 422 kg
- Operating Capacity (50% of Tipping Weight)
- 1,330 lbs
- 603 kg
- Tipping Weight
- 2,660 lbs
- 1,206 kg
- Travel Speed, Maximum
- 7.1 mph
- 11.4 kph
- Breakout Force
- 2,480 lbs
- 1,125 kg
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 13.3 gpm
- 50.4 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,000 psi
- 20,684 kPa
- Controls
- Variable flow via joystick rocker switch, or continuous via console switch
- Variable flow via joystick rocker switch, or continuous via console switch
- Couplers
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
- Cooling System
- High efficiency oil cooler beside engine radiator, not stacked
- High efficiency oil cooler beside engine radiator, not stacked
- Quick-Attach Mounting Plate
- ASV Mini-Track loader coupler with Manual Latching pins
- ASV Mini-Track loader coupler with Manual Latching pins
Engine
- Type
- Diesel, 3-cylinder, turbocharged
- Diesel, 3-cylinder, turbocharged
- Model
- YANMAR 3TNV86CT
- YANMAR 3TNV86CT
- Gross Power Rating
- 38.2 hp
- 28.5 kW
- Displacement
- 95.7 cu in
- 1.6 L
- Torque, Peak
- 93.6 ft-lb
- 126.9 Nm
- Cooling System Type and Capacity
- Engine-driven fan and coolant/antifreeze-filled radiator
- Engine-driven fan and coolant/antifreeze-filled radiator
- Intake Air Cleaner
- Dual stage
- Dual stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track with embedded co-polymer cords and all-purpose treads
- General purpose track with embedded co-polymer cords and all-purpose treads
- Track Width
- 11 in
- 279 mm
- Length of Track on Ground
- 55 in
- 1,397 mm
- Ground Contact Area
- 1,210 in²
- 0.78 m²
- Drive System
- Two hydrostatic direct drive sprockets controlled by single joystick
- Two hydrostatic direct drive sprockets controlled by single joystick
- Undercarriage Suspension
- Two independent torsion axles per undercarriage
- Two independent torsion axles per undercarriage
- Roller Wheels
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings
Service Capacity
- Fuel Tank
- 13 gal
- 49 L
- DEF Capacity
- N/A
- N/A
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 590 CCA
- 590 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1–12 V port inside operator station
- 1–12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
- Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
- Seat
- Vinyl seat with built-in operator presence switch (B), premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 2 in. wide seat belt
- Vinyl seat with built-in operator presence switch (B), premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 51 mm wide seat belt
- Controls
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
- Machine Display
- Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
- Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
- Engine Speed Control
- Hand-operated rotary throttle
- Hand-operated rotary throttle
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- Standard Features
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
- Optional Features
- Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door
- Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door
