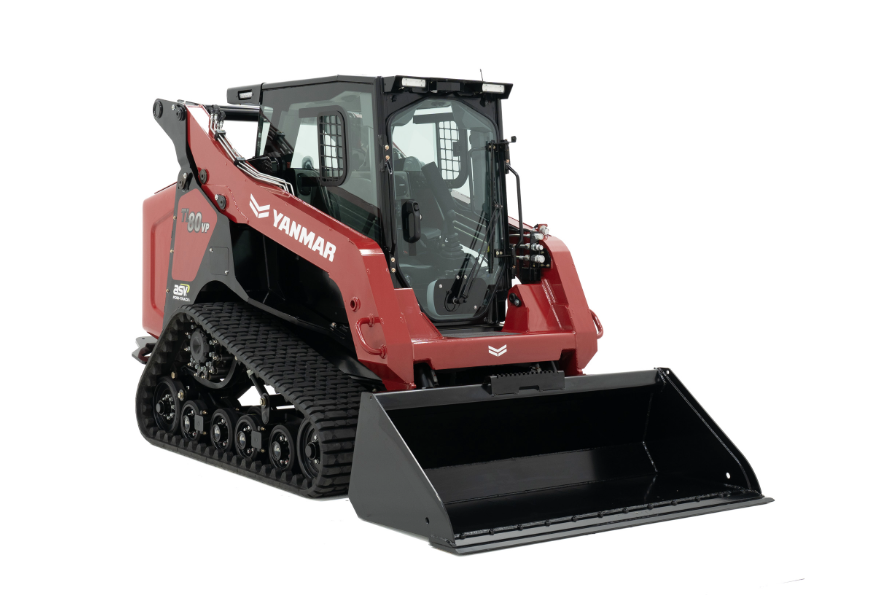

Compact Track Loader TL80VP
Power for Demanding Jobsites
Designed for contractors who need greater lifting capability without compromising flotation or ride quality, the TL80VP combines powerful hydraulics with an advanced ASV Posi-Track® dual-level suspended torsion-axle undercarriage. From construction and agriculture to commercial sitework, it delivers confident performance where productivity matters most.
Big Capability. Smooth Operation.
-
Powering Demanding Attachments
The 34.3-gpm high-flow hydraulics provides the TL80VP with the capability to operate demanding attachments efficiently. Direct-drive hydraulic motors transfer power effectively, while an advanced cooling system is engineered to run at full load, 100% of the time, in ambient temperatures up to 118°F.
-
Smoother By Design
The ASV Posi-Track® undercarriage features dual-level suspension to maintain ground contact, improve traction and smooth out travel over rough terrain. Standard 17.7-inch wide tracks provide added flotation across soft or uneven ground.
-
Comfort That Keeps Up
A spacious cab, suspended seat and adjustable armrests help reduce operator fatigue throughout the day. The standard rearview camera and available LED side lights and clear side glass improve jobsite awareness. SmartAssist Remote telematics comes standard and gives owners convenient access to important machine information.
Specifications*
Operating Specifications
- Loader Arms
- Vertical
- Vertical
- Operating Weight (Open ROPS)
- 8,955 lbs
- 4,062 kg
- Operating Weight (Enclosed Cab)
- 9,295 lbs
- 4,216 kg
- Ground Pressure at Operating Weight
- 3.9 psi
- 26.9 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 2,800 lbs
- 1,270 kg
- Operating Capacity (50% of Tipping Weight)
- 4,000 lbs
- 1,814 kg
- Tipping Weight
- 8,000 lbs
- 3,629 kg
- Travel Speed, Maximum
- 9.1 mph
- 14.6 km/h
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 24.7 gpm
- 93.5 lpm
- Auxiliary Hyd. Flow, High
- 34.3 gpm
- 129.8 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,481 psi
- 24,000 kPa
- Auxiliary Hyd. Pressure, High
- 3,771 psi
- 26,000 kPa
- Controls
- Variable flow via joystick rocker switch, or continuous via console switch
- Variable flow via joystick rocker switch, or continuous via console switch
- Couplers
- Flat Faced Couplers: 1/2 in.
- Flat Faced Couplers: 1/2 in.
- Cooling System
- High efficiency side-by-side radiator and oil cooler, not stacked
- High efficiency side-by-side radiator and oil cooler, not stacked
- Quick-Attach Mounting Plate
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
Engine
- Type
- Diesel, 4-cylinder, turbocharged
- Diesel, 4-cylinder, turbocharged
- Model
- Yanmar 4TN86CHT
- Yanmar 4TN86CHT
- Gross Power Rating
- 71.5 hp
- 53.3 kW
- Displacement
- 128.1 cu in
- 2.1 L
- Torque, Peak
- 193.8 ft-lb
- 262.8 Nm
- Cooling System Type and Capacity
- Belt-driven fan and anti-freeze filled radiator cooling
- Belt-driven fan and anti-freeze filled radiator cooling
- Intake Air Cleaner
- Dual stage
- Dual stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- Track Width
- 17.7 in.
- 450 mm
- Length of Track on Ground
- 64.5 in.
- 1,638 mm
- Ground Contact Area
- 2,283 in.²
- 1.47 m²
- Drive System
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Undercarriage Suspension
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Roller Wheels
- 12 ultra-high molecular weight polyethylene and rubber wheels per track, wheels include metal-face sealed bearings
- 12 ultra-high molecular weight polyethylene and rubber wheels per track, wheels include metal-face sealed bearings
Service Capacity
- Fuel Tank
- 21.4 gal
- 81 L
- DEF Capacity
- N/A
- N/A
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 800 CCA
- 800 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1-12 V port inside operator station
- 1-12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open Rops Base, Open Rops Premium Plus Hydraulics, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics, Forestry
- Open Rops Base, Open Rops Premium Plus Hydraulics, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics, Forestry
- Seat
- Standard mechanical suspension seat, single sided lap bar and 2 in. wide seat belt
- Standard mechanical suspension seat, single sided lap bar and 51 mm wide seat belt
- Controls
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Machine Display
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Engine Speed Control
- Hand-operated dial, foot throttle optional
- Hand-operated dial, foot throttle optional
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- Standard Features
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Optional Features
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control
