Compact Track Loader TL50RP
Powerful Performance with Low Ground Impact

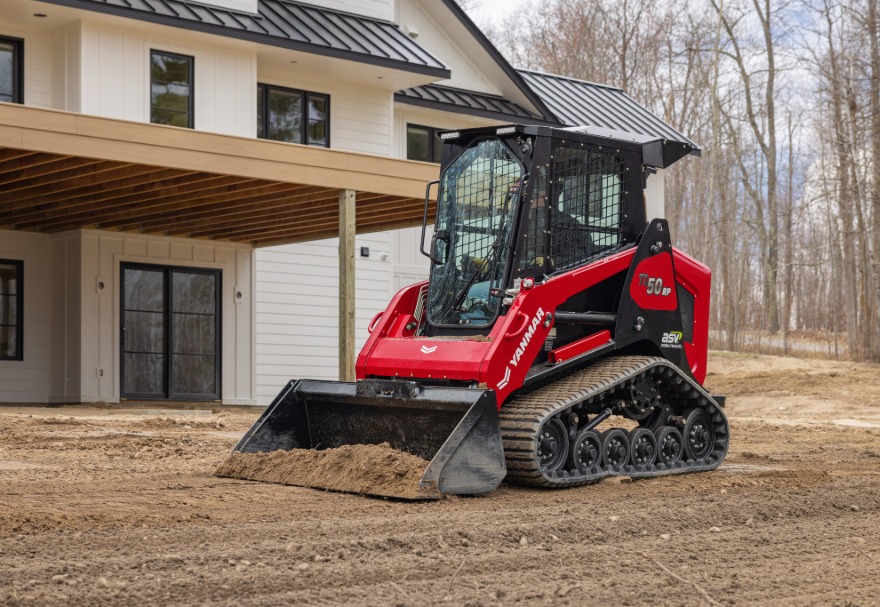

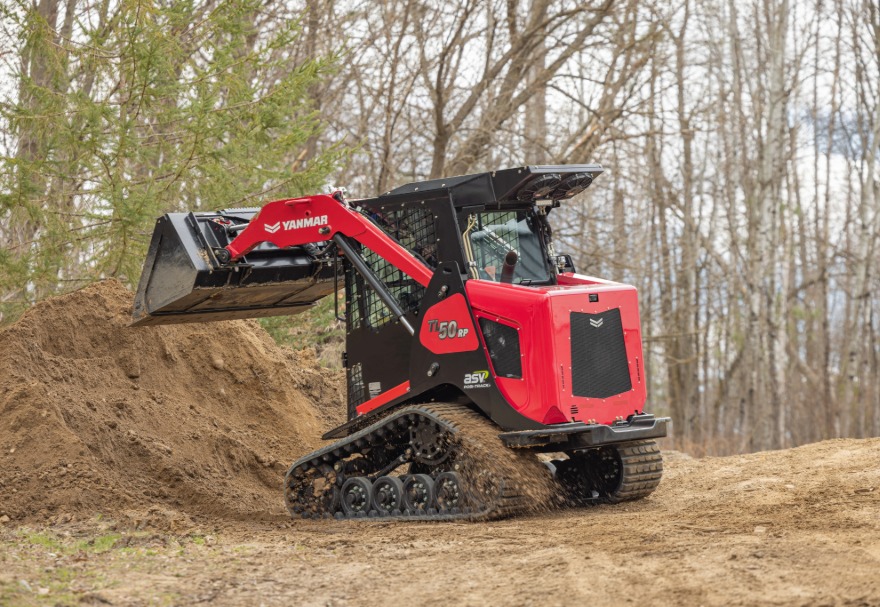

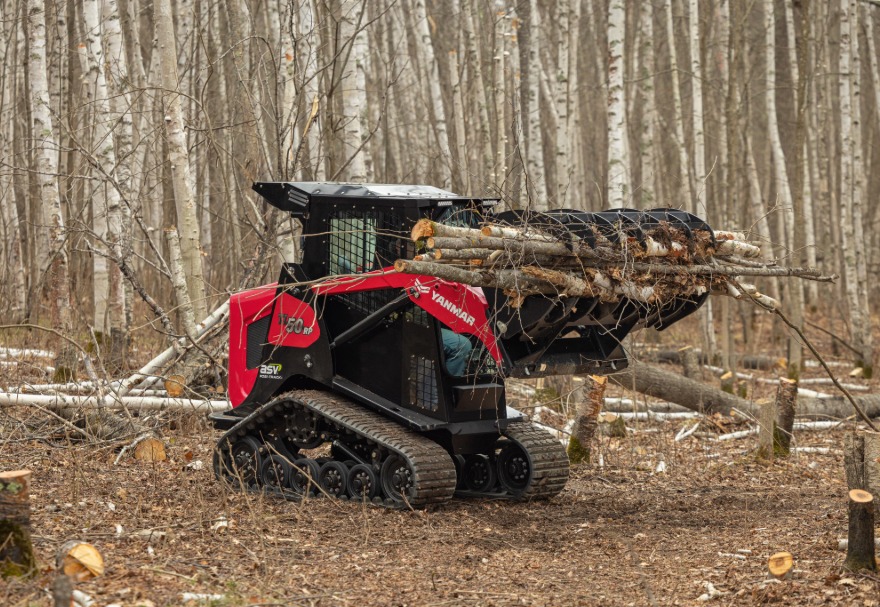

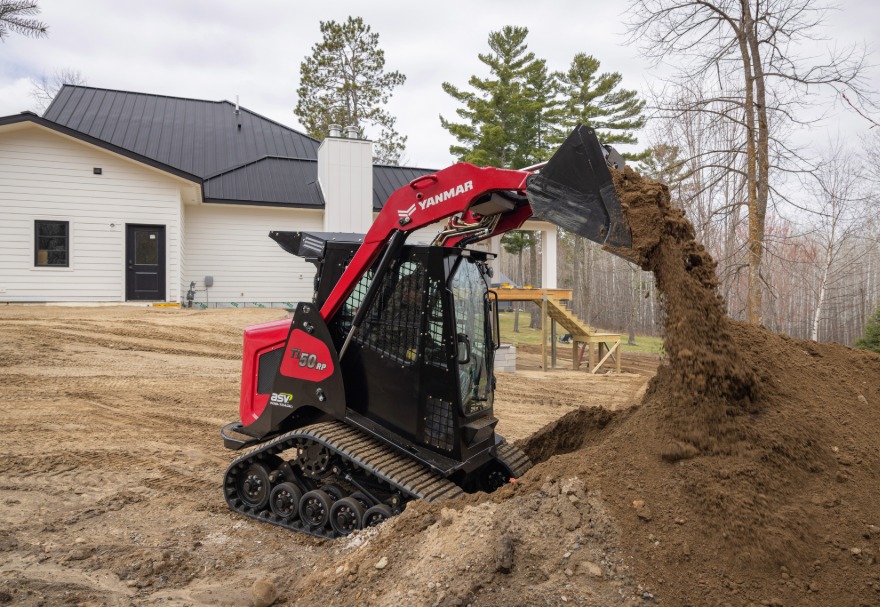

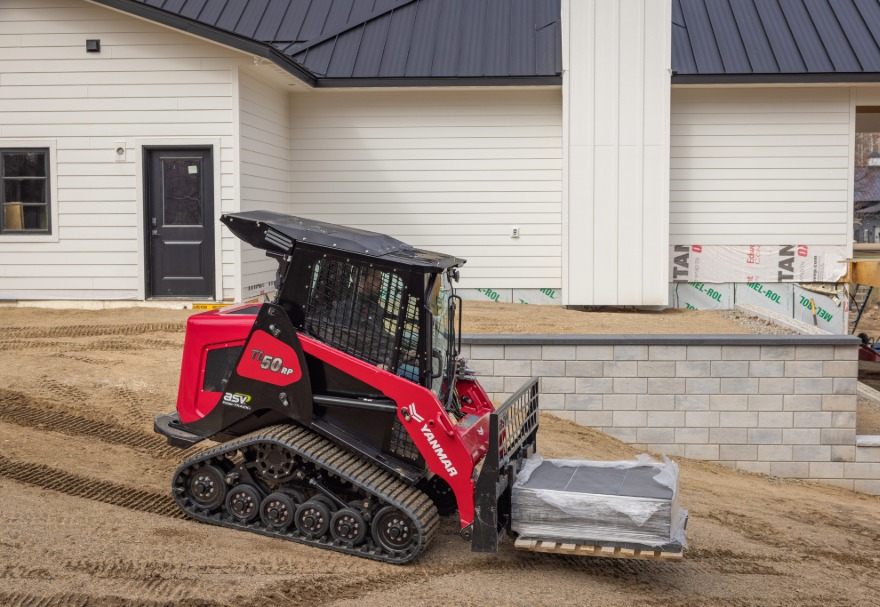

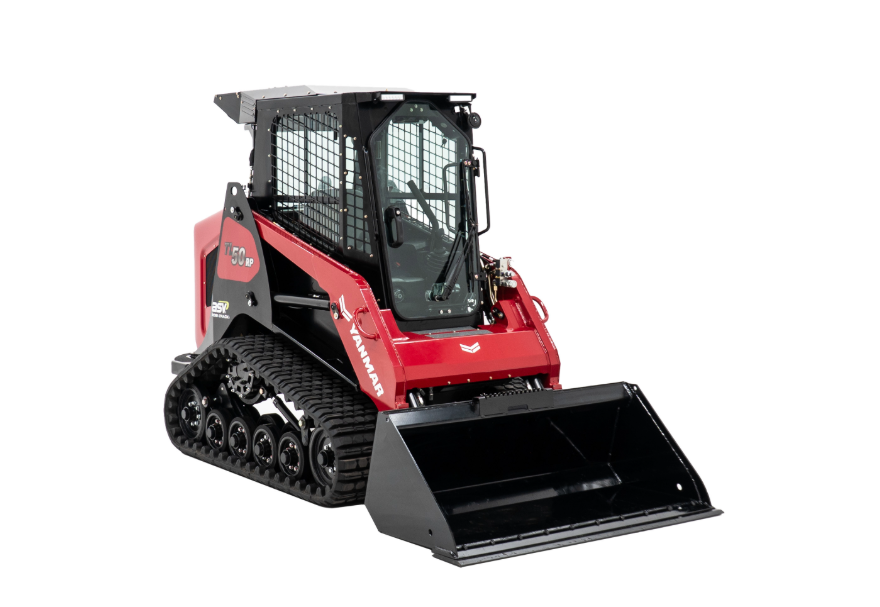

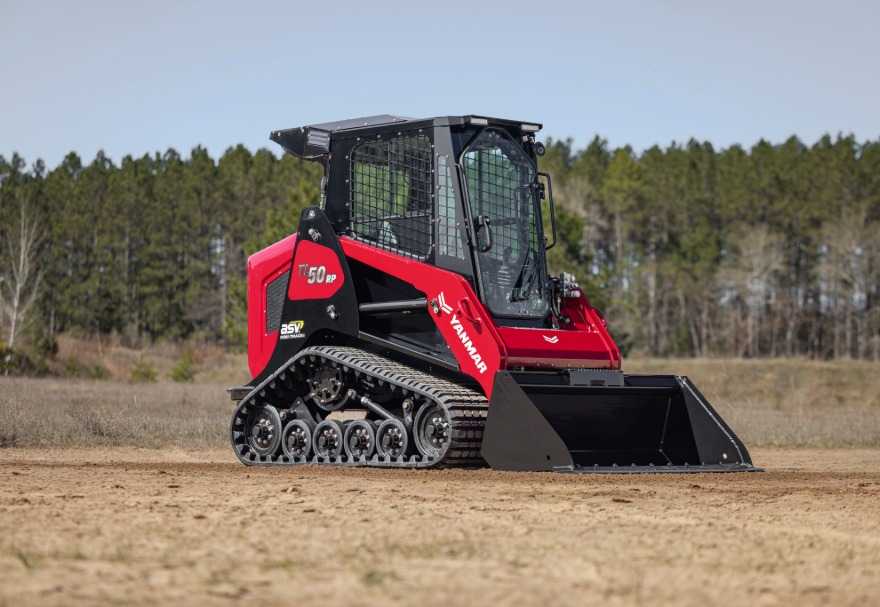

Introducing the TL50RP, a compact track loader that packs maximum power and lift capacity into a maneuverable 58.5″ platform. Built for demanding applications that require more from a compact machine, it delivers increased performance without giving up the jobsite agility contractors depend on. With ASV Posi-Track® undercarriage technology and an available all-weather cab, it’s built for any job, any season.
More Power. No Compromises.
-
Built Around the Operator
The TL50RP keeps operators comfortable and productive in any conditions. An available all-weather cab provides year-round protection from the elements, while large windows deliver clear sightlines in every direction. An optional hydraulic quick attach makes switching between attachments fast and effortless, without ever leaving the operator station.
-
Built to Perform, Easy to Maintain
A turbocharged Yanmar diesel engine produces 53.8-horsepower and 103-foot pounds of peak torque. With a 1,400-pound rated operating capacity and 2,920-pounds of breakout force, it’s built to handle heavier material confidently, job after job, season after season. A rear-tilting hood keeps maintenance simple and downtime short.
-
Intuitive Control for Every Task
Pilot operated hydraulic joysticks manage loader and drive functions independently, with auxiliary variable flow available via joystick buttons or continuous console switch. The hand-operated rotary throttle gives precise engine speed management, and the 4.3-inch color display puts key machine data right in front of you.
Specifications
Operating Specifications
- Loader Arms
- Radial
- Radial
- Operating Weight (Open ROPS)
- 5,205 lbs
- 2,361 kg
- Operating Weight (Enclosed Cab)
- 5,530 lbs
- 2,508 kg
- Ground Pressure at Operating Weight
- 3.0 psi
- 20.68 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 1,400 lbs
- 635 kg
- Operating Capacity (50% of Tipping Weight)
- 2,000 lbs
- 907 kg
- Tipping Weight
- 4,000 lbs
- 1,814 kg
- Travel Speed, Maximum
- 7.1 mph
- 11.4 kph
- Breakout Force
- 2,920 lbs
- 1,324 kg
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 13.3 gpm
- 50.4 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,000 psi
- 20,684 kPa
- Controls
- Variable flow via joystick rocker switch, or continuous via console switch
- Variable flow via joystick rocker switch, or continuous via console switch
- Couplers
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block
- Cooling System
- High efficiency oil cooler beside engine radiator, not stacked
- High efficiency oil cooler beside engine radiator, not stacked
- Quick-Attach Mounting Plate
- Universal Standard Skid Steer Quick Attach coupler with manual latching pins
- Universal Standard Skid Steer Quick Attach coupler with manual latching pins
Engine
- Type
- Diesel, 3-cylinder, turbocharged
- Diesel, 3-cylinder, turbocharged
- Model
- YANMAR 3TNV86CHT
- YANMAR 3TNV86CHT
- Gross Power Rating
- 53.8 hp
- 40.1 kW
- Displacement
- 95.7 cu in
- 1.6 L
- Torque, Peak
- 103 ft-lb
- 139.7 Nm
- Cooling System Type and Capacity
- Engine-driven fan and coolant/antifreeze-filled radiator
- Engine-driven fan and coolant/antifreeze-filled radiator
- Intake Air Cleaner
- Dual stage
- Dual stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track with embedded co-polymer cords and all-purpose treads
- General purpose track with embedded co-polymer cords and all-purpose treads
- Track Width
- 15 in
- 381 mm
- Length of Track on Ground
- 57 in
- 1,448 mm
- Ground Contact Area
- 1,713 in²
- 1.1 m²
- Drive System
- Two hydrostatic direct drive sprockets controlled by single joystick
- Two hydrostatic direct drive sprockets controlled by single joystick
- Undercarriage Suspension
- Two independent torsion axles per undercarriage
- Two independent torsion axles per undercarriage
- Roller Wheels
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include metal- face sealed bearings
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include metal- face sealed bearings
Service Capacity
- Fuel Tank
- 13 gal
- 49 L
- DEF Capacity
- N/A
- N/A
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 590 CCA
- 590 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1–12 V port inside operator station
- 1–12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
- Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
- Seat
- Vinyl seat with built-in operator presence switch (B); premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 2 in. wide seat belt
- Vinyl seat with built-in operator presence switch (B); premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 51 mm wide seat belt
- Controls
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction
- Machine Display
- Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
- Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
- Engine Speed Control
- Hand-operated rotary throttle
- Hand-operated rotary throttle
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- Standard Features
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
- Optional Features
- Rear view camera, hydraulic quick attach, turf track with smooth treads, brush guard, 1/4″ polycarbonate front door
- Rear view camera, hydraulic quick attach, turf track with smooth treads, brush guard, 1/4″ polycarbonate front door
