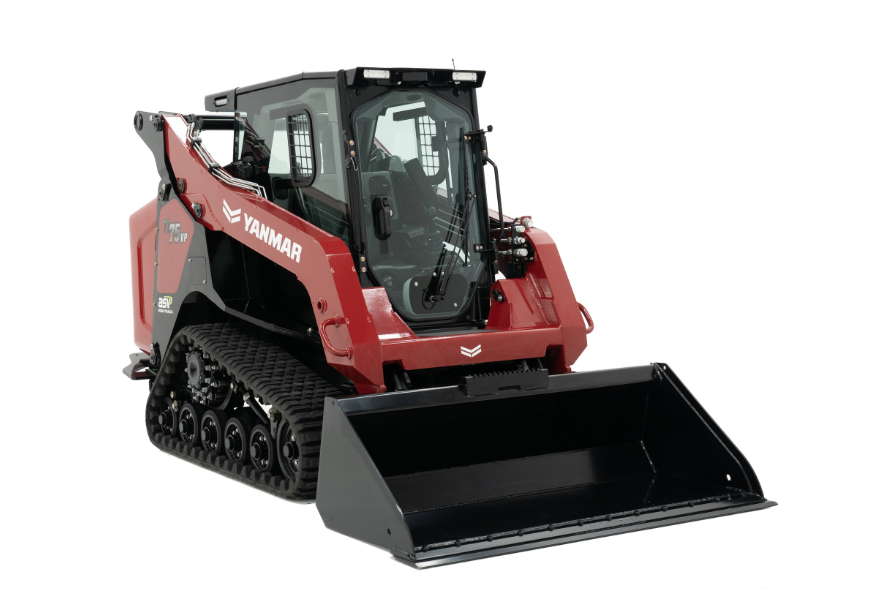

Compact Track Loader TL75VP
Built to Lift Productivity
The TL75VP pairs the versatility of a vertical-lift design with the ride quality of our ASV Posi-Track® undercarriage. With a strong rated operating capacity and excellent reach at full lift height, it is built for pallet work, truck loading and demanding material handling. Dependable traction and low ground pressure help keep it working confidently across a wide range of surfaces.
Built to Lift. Built to Last.
-
Go Higher. Move More.
The TL75VP delivers the lift height, reach and control needed for demanding material-handling work. Its vertical-lift design delivers strong reach at full lift height, while customizable electrohydraulic controls help operators place loads more confidently.
-
Traction That Doesn’t Back Down
The ASV Posi-Track® undercarriage puts more track on the ground, delivering the traction, flotation and stability to work confidently across soft, uneven and challenging terrain. Standard 15-inch wide tracks let you equip the TL75VP for the ground conditions you face every day.
-
Visibility Meets Intelligence
A standard rearview camera and available LED side lights and clear side glass provide greater visibility of the work around you. Adjustable armrests support comfortable, confident operation, while SmartAssist Remote telematics keeps important machine information close at hand, helping you manage maintenance, utilization and uptime.
Specifications*
Operating Specifications
- Loader Arms
- Vertical
- Vertical
- Operating Weight (Open ROPS)
- 7,915 lbs
- 3,590 kg
- Operating Weight (Enclosed Cab)
- 8,355 lbs
- 3,790 kg
- Ground Pressure at Operating Weight
- 4.5 psi
- 31 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 2,300 lbs
- 1,043 kg
- Operating Capacity (50% of Tipping Weight)
- 3,286 lbs
- 1,491 kg
- Tipping Weight
- 6,571 lbs
- 2,981 kg
- Travel Speed, Maximum
- 9.1 mph
- 14.6 km/h
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 21.4 gpm
- 81 lpm
- Auxiliary Hyd. Flow, High
- 26.7 gpm
- 101 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,481 psi
- 24,000 kPa
- Auxiliary Hyd. Pressure, High
- 3,771 psi
- 26,000 kPa
- Controls
- Variable flow via joystick rocker switch or continuous via console switch
- Variable flow via joystick rocker switch or continuous via console switch
- Couplers
- Flat Faced Couplers: 1/2 in.
- Flat Faced Couplers: 1/2 in.
- Cooling System
- High efficiency side-by-side radiator and oil cooler, not stacked
- High efficiency side-by-side radiator and oil cooler, not stacked
- Quick-Attach Mounting Plate
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
Engine
- Type
- Diesel, 4-cylinder, turbocharged
- Diesel, 4-cylinder, turbocharged
- Model
- Yanmar 4TN86CHT
- Yanmar 4TN86CHT
- Gross Power Rating
- 71.5 hp
- 53.3 kW
- Displacement
- 128.1 cu in
- 2.1 L
- Torque, Peak
- 193.8 ft-lb
- 262.8 Nm
- Cooling System Type and Capacity
- Belt-driven fan and anti-freeze filled radiator cooling
- Belt-driven fan and anti-freeze filled radiator cooling
- Intake Air Cleaner
- Dual stage
- Dual stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- Track Width
- 15 in.
- 381 mm
- Length of Track on Ground
- 59 in.
- 1,499 mm
- Ground Contact Area
- 1,770 in.²
- 1.14 m²
- Drive System
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Undercarriage Suspension
- Two independent torsion axles per undercarriage
- Two independent torsion axles per undercarriage
- Roller Wheels
- 12 ultra-high molecular weight polyethylene and rubber wheels per track, wheels include metal-face sealed bearings
- 12 ultra-high molecular weight polyethylene and rubber wheels per track, wheels include metal-face sealed bearings
Service Capacity
- Fuel Tank
- 21.4 gal
- 81 L
- DEF Capacity
- N/A
- N/A
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 800 CCA
- 800 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1-12 V port inside operator station
- 1-12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open Rops Base, Open Rops Premium, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics
- Open Rops Base, Open Rops Premium, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics
- Seat
- Standard mechanical suspension seat, single sided lap bar and 2 in. wide seat belt
- Standard mechanical suspension seat, single sided lap bar and 51 mm wide seat belt
- Controls
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Machine Display
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Engine Speed Control
- Hand-operated dial, foot throttle optional
- Hand-operated dial, foot throttle optional
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- Standard Features
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Optional Features
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control
