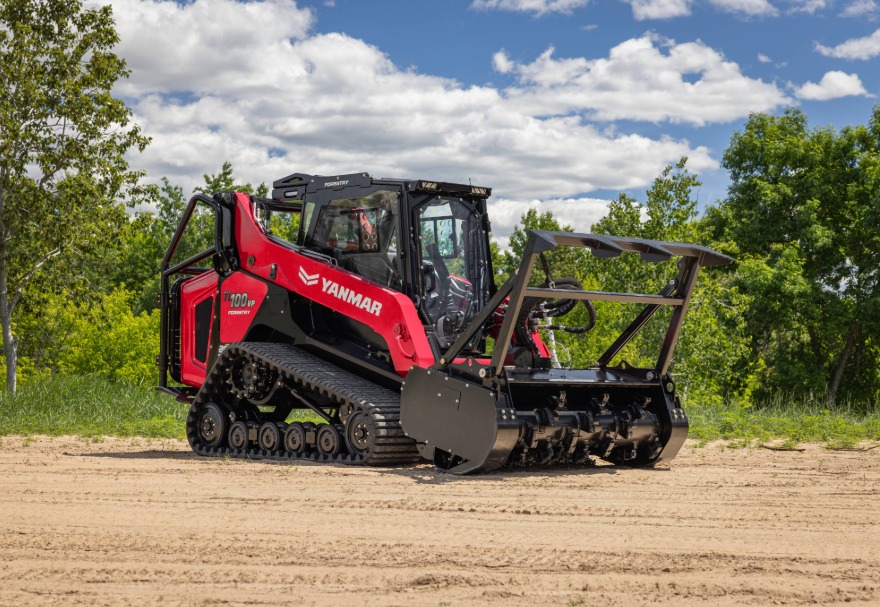

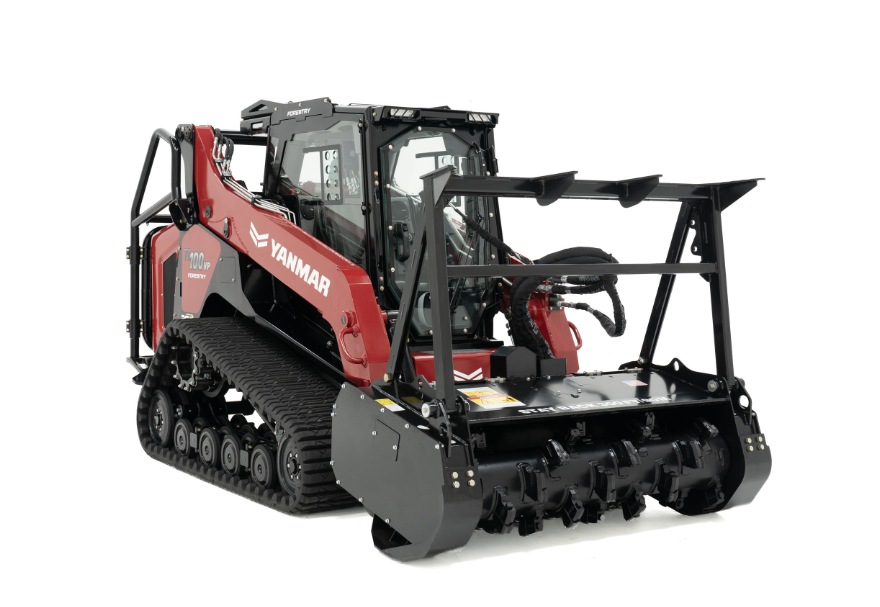

Compact Track Loader TL100VP Forestry
Forestry Performance Without Compromise

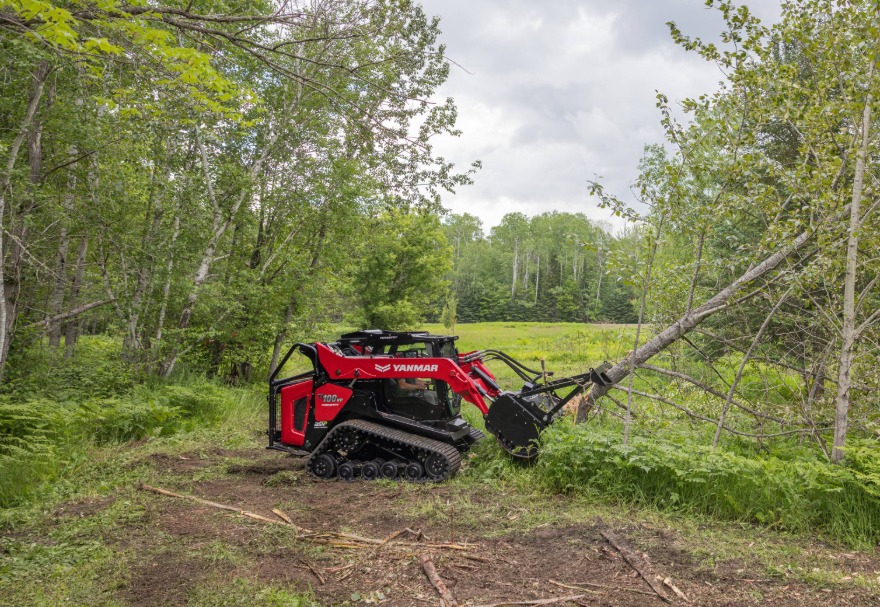

The TL100VPF brings serious forestry performance and is engineered for the toughest vegetation management and land-clearing applications. Combining 103.5 horsepower, high-flow hydraulics, purpose-built forestry guarding and our advanced ASV Posi-Track® dual-level suspended torsion-axle undercarriage, it delivers the durability, protection and performance professionals demand in the harshest operating conditions.
Take Command of Rough Terrain
-

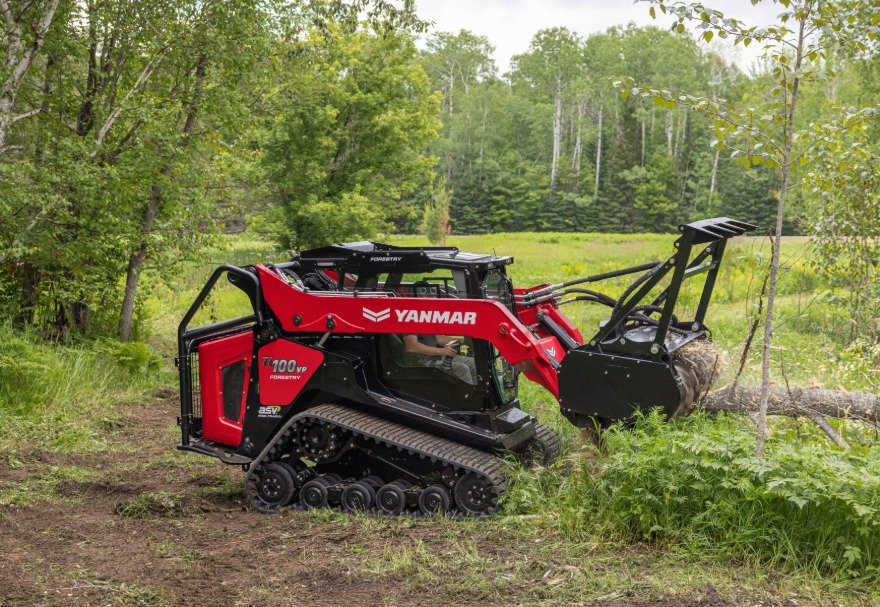

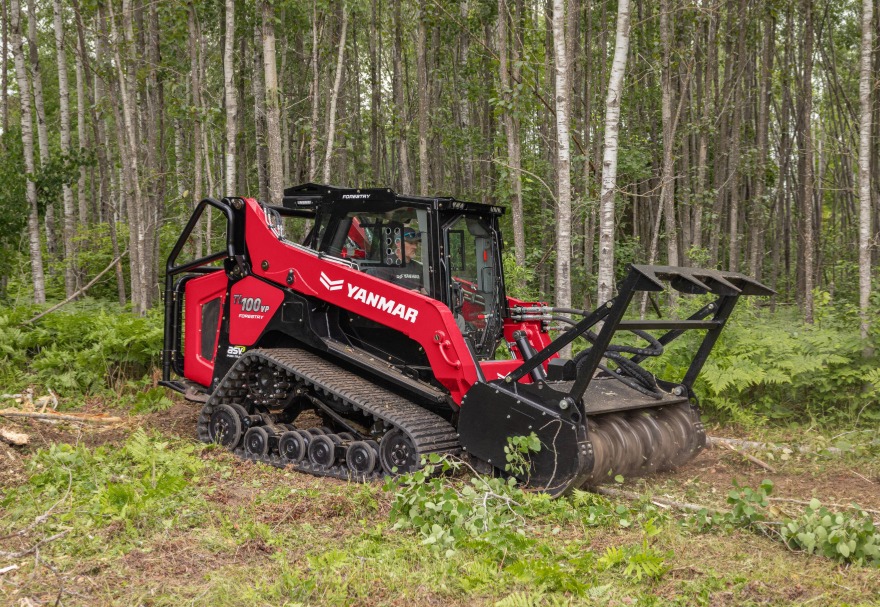

Put 103.5 Horsepower Behind the Mulcher
The TL100VPF combines its Yanmar engine with standard 41-gpm high-flow hydraulics to drive demanding forestry attachments. Large hydraulic lines and direct-drive pumps help reduce power loss, while the heavy-duty cooling system supports efficient operation during intensive land-clearing work.
-

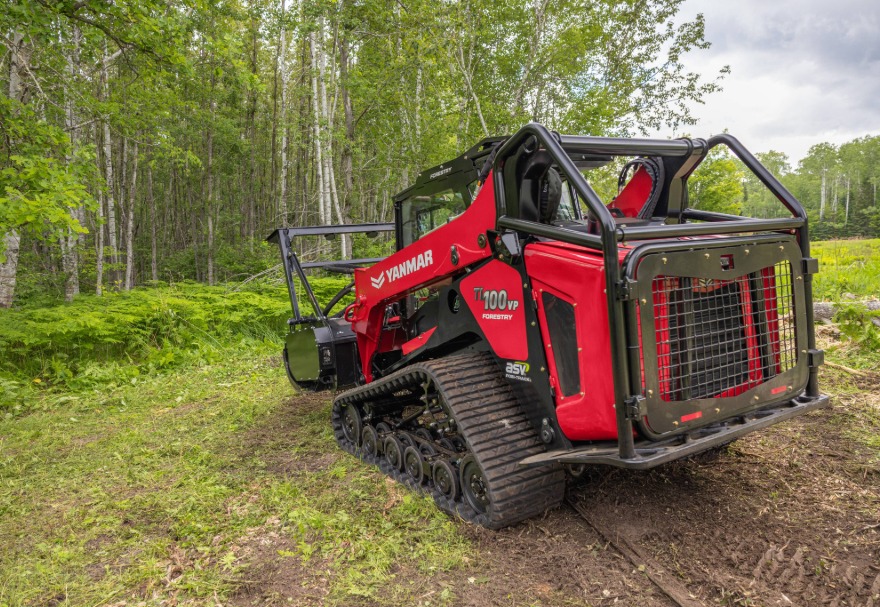

Protection Built for Forestry
Purpose-built guarding helps protect critical machine components in harsh operating conditions, while the forestry-equipped cab provides enhanced operator protection. A standard rearview camera and LED work lights improve visibility, and the 7-inch display keeps vital machine information within easy view.
-

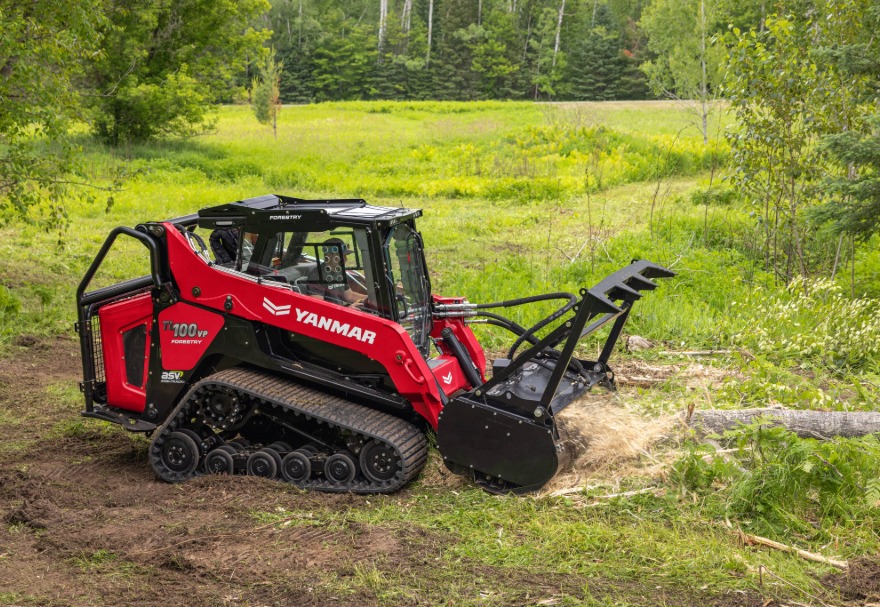

Traction for the Terrain Ahead
The ASV Posi-Track® undercarriage features suspended wheels and independent torsion axles to maintain ground contact over rough terrain. Standard 20-inch wide tracks provide a broad footprint and low ground pressure, while the suspended design delivers a smoother ride that helps reduce operator fatigue. Standard SmartAssist Remote telematics provides convenient access to machine location, utilization and maintenance information.
Specifications*
Operating Specifications
- Loader Arms
- Vertical
- Vertical
- Operating Weight (Open ROPS)
- N/A
- N/A
- Operating Weight (Enclosed Cab)
- 11,570 lbs
- 5,248 kg
- Ground Pressure at Operating Weight
- 4.1 psi
- 28.3 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 4,100 lbs
- 1,860 kg
- Operating Capacity (50% of Tipping Weight)
- 5,857 lbs
- 2,657 kg
- Tipping Weight
- 11,714 lbs
- 5,313 kg
- Travel Speed, Maximum
- 9.3 mph
- 14.9 km/h
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 23 gpm
- 87 lpm
- Auxiliary Hyd. Flow, High
- 41 gpm
- 155 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,481 psi
- 24,000 kPa
- Auxiliary Hyd. Pressure, High
- 3,989 psi
- 27,503 kPa
- Controls
- Variable flow via joystick rocker switch, or continuous via console switch
- Variable flow via joystick rocker switch, or continuous via console switch
- Couplers
- Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
- Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
- Cooling System
- High efficiency side-by-side radiator and oil cooler, not stacked
- High efficiency side-by-side radiator and oil cooler, not stacked
- Quick-Attach Mounting Plate
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
Engine
- Type
- Diesel, 4-cylinder, turbocharged
- Diesel, 4-cylinder, turbocharged
- Model
- Yanmar 4TNV94FHT
- Yanmar 4TNV94FHT
- Gross Power Rating
- 103.5 hp
- 77.2 kW
- Displacement
- 189.2 cu in
- 3.1 L
- Torque, Peak
- 291 ft-lb
- 395 Nm
- Cooling System Type and Capacity
- Hydraulically-driven fan and anti-freeze filled radiator cooling system
- Hydraulically-driven fan and anti-freeze filled radiator cooling system
- Intake Air Cleaner
- Three-stage
- Three-stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- Track Width
- 20 in.
- 508 mm
- Length of Track on Ground
- 71 in.
- 1,803 mm
- Ground Contact Area
- 2,845 in.²
- 1.83 m²
- Drive System
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Undercarriage Suspension
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Roller Wheels
- 24 high-density polyurethane and rubber wheels per track, wheels include sealed bearings
- 24 high-density polyurethane and rubber wheels per track, wheels include sealed bearings
Service Capacity
- Fuel Tank
- 34 gal
- 128.7 L
- DEF Capacity
- 5 gal
- 18.9 L
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 950 CCA
- 950 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1-12 V port inside operator station
- 1-12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- All Weather Forestry Cab with heat and air conditioning, 3/4″ poly door, 1/2″ poly sides, forestry guarding
- All Weather Forestry Cab with heat and air conditioning, 3/4″ poly door, 1/2″ poly sides, forestry guarding
- Seat
- Adjustable air ride suspension seat, single sided lap bar and 2 in. wide seat belt
- Adjustable air ride suspension seat, single sided lap bar and 51 mm wide seat belt
- Controls
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Machine Display
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Engine Speed Control
- Hand-operated dial with foot throttle
- Hand-operated dial with foot throttle
- ROPS
- ISO 8082-Forestry
- ISO 8082-Forestry
- FOPS
- ISO 8083-Forestry
- ISO 8083-Forestry
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed side-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed side-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- Standard Features
- All Weather Forestry Cab, 3/4″ poly door, 1/2″ poly sides, forestry guarding, heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, standard and high flow aux hydraulics, adjustable air ride seat, horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, adjustable joystick, SmartAssist Remote telematics
- All Weather Forestry Cab, 3/4″ poly door, 1/2″ poly sides, forestry guarding, heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, standard and high flow aux hydraulics, adjustable air ride seat, horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, adjustable joystick, SmartAssist Remote telematics
