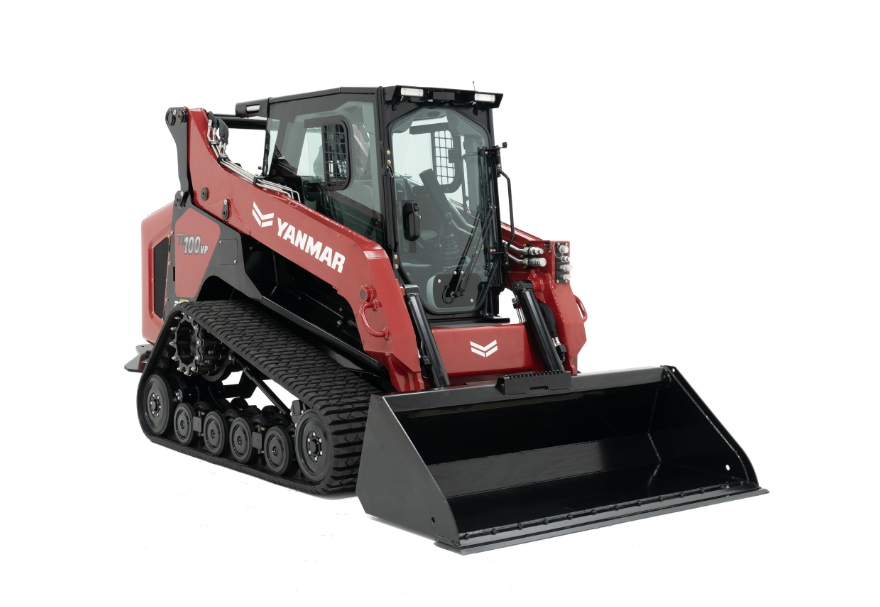

Compact Track Loader TL100VP
Maximum Performance. Premium Productivity.

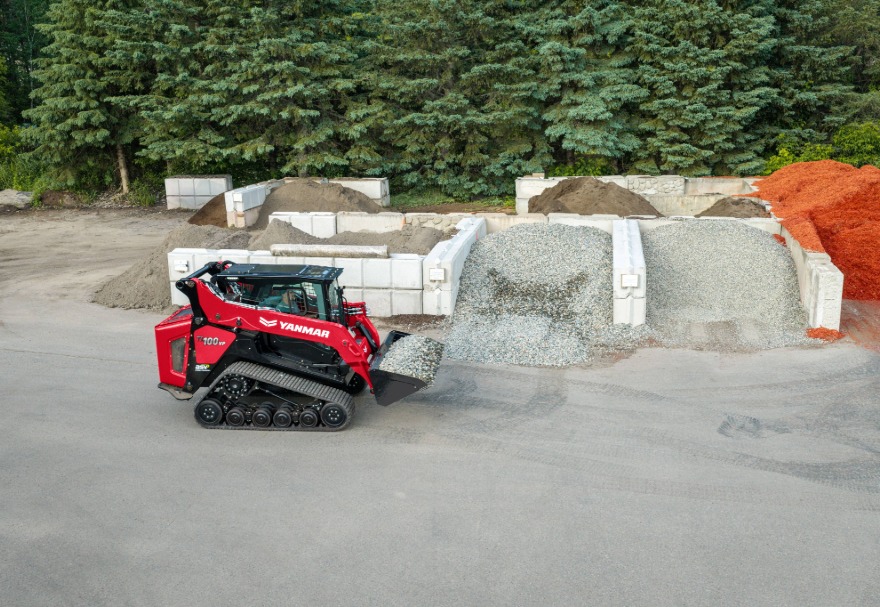

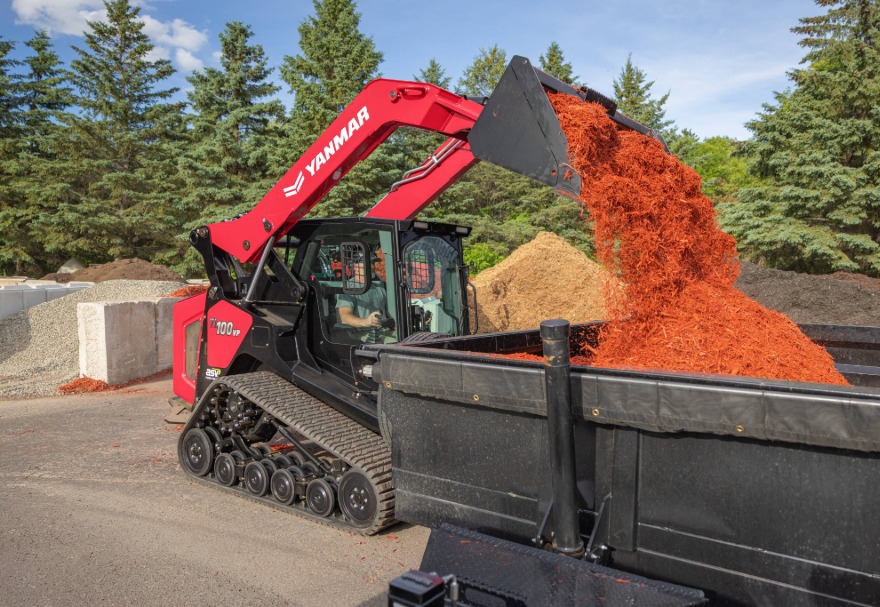

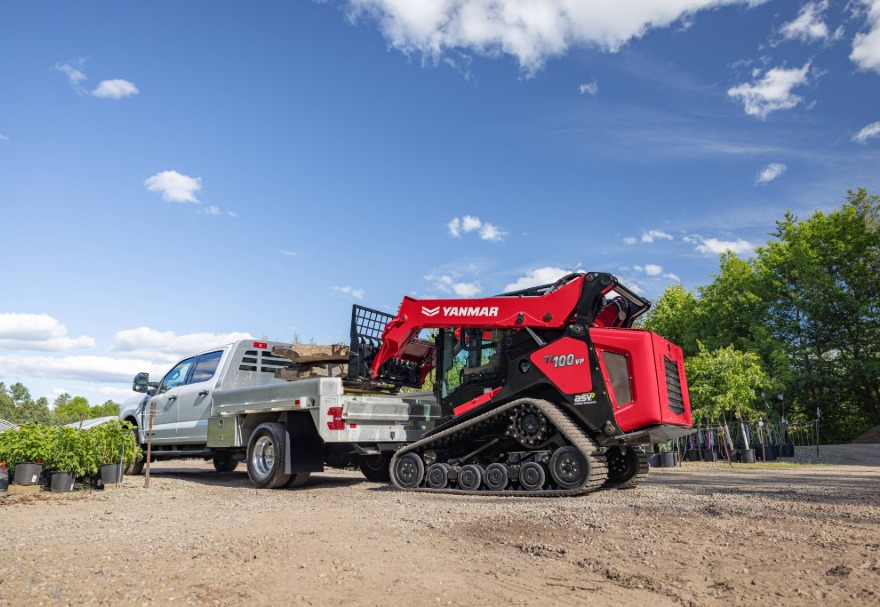

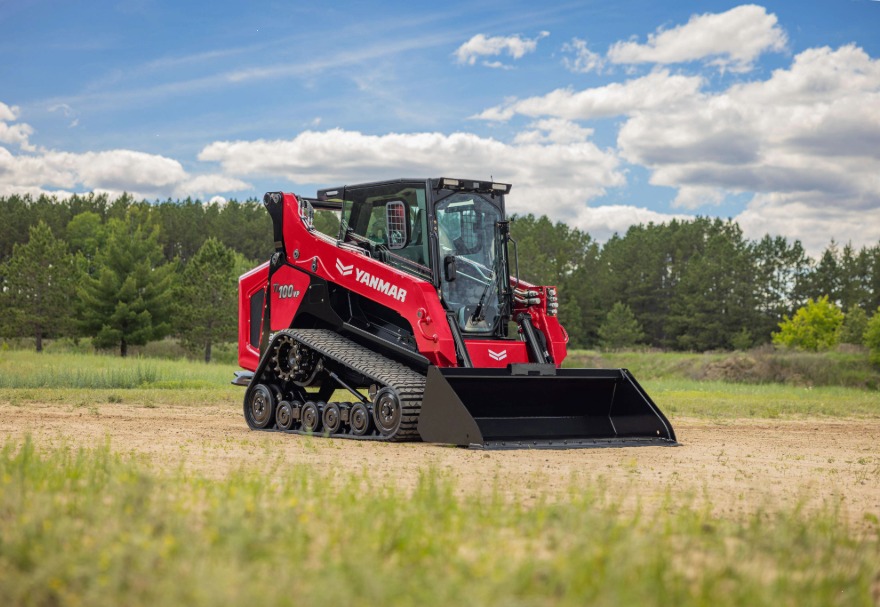

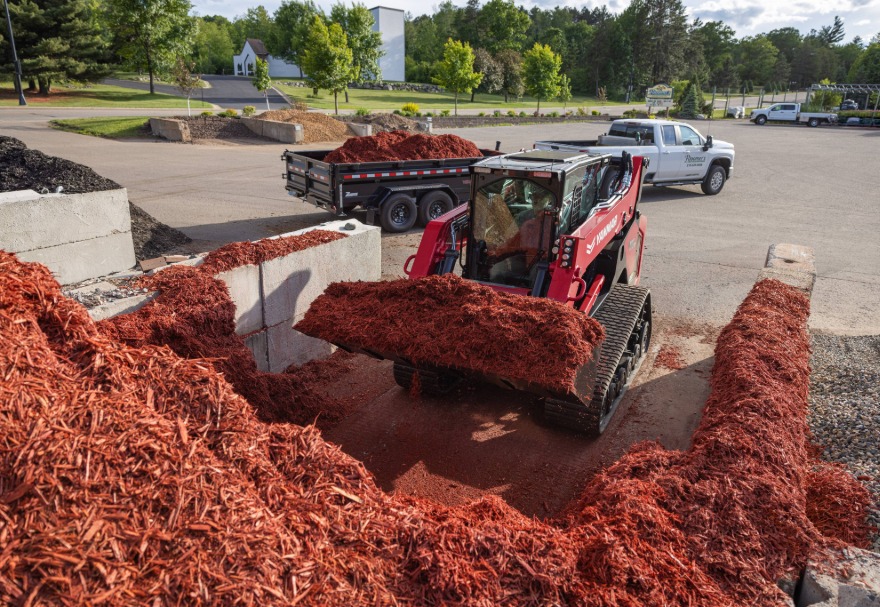

The TL100VP is built for high-production work requiring exceptional lifting capability, powerful hydraulics and all-day operator comfort. Its 103.5-horsepower Yanmar engine and vertical-lift design combine with our advanced ASV Posi-Track® dual-level suspended torsion-axle undercarriage to provide the strength and traction needed for demanding construction, landscaping, agriculture and material-handling applications.
The Powerhouse of the Lineup
-
Serious Power for Demanding Attachments
The TL100VP pairs its 103.5-horsepower Yanmar engine with 41-gpm high-flow hydraulics to power demanding attachments. Dual hydraulic drive motors transfer power efficiently, while the hydraulically driven cooling fan, included with Plus Hydraulics configurations, delivers superior cooling under sustained loads.
-

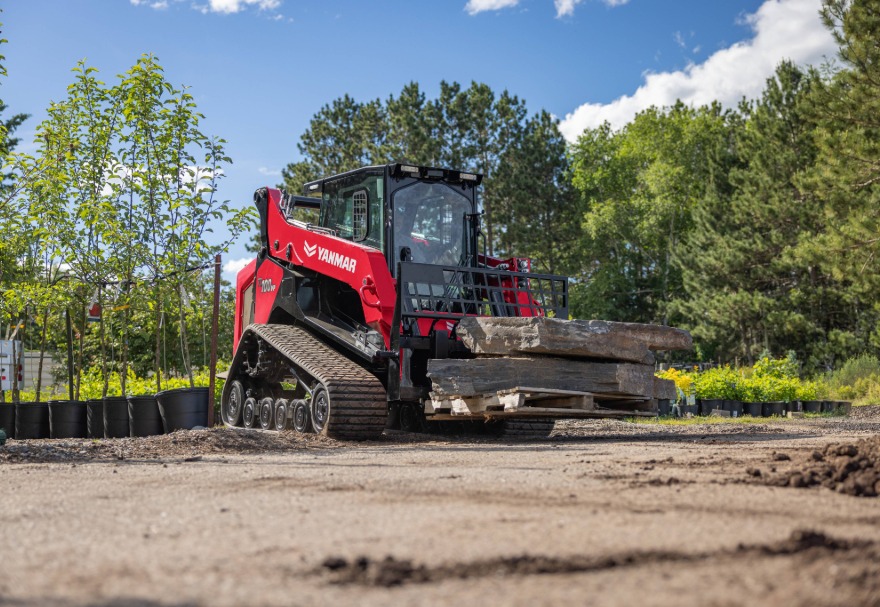

Lift With Strength and Stability
A 3,500-pound rated operating capacity and vertical-lift design give the TL100VP the capability to handle heavy materials at height. The advanced ASV Posi-Track® undercarriage features an independent torsion-axle dual-level suspension to smooth out rough terrain while maintaining traction and stability. Standard 18-inch wide tracks provide a broad footprint for confident performance across changing ground conditions.
-
Built Around the Operator
A clear-sided cab, mechanical suspension seat and adjustable armrests create a comfortable operating environment. Electronic joystick controls with adjustable operator profiles and speeds allow operation to be tailored to individual preferences. The 7-inch multifunction display keeps essential machine information easy to access. A standard rearview camera and available LED side lights and clear side glass enhance jobsite visibility, while standard SmartAssist Remote telematics provides convenient access to valuable machine information.
Specifications*
Operating Specifications
- Loader Arms
- Vertical
- Vertical
- Operating Weight (Open ROPS)
- 10,345 lbs
- 4,692 kg
- Operating Weight (Enclosed Cab)
- 10,835 lbs
- 4,915 kg
- Ground Pressure at Operating Weight
- 4.0 psi
- 27.6 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 3,500 lbs
- 1,588 kg
- Operating Capacity (50% of Tipping Weight)
- 5,000 lbs
- 2,268 kg
- Tipping Weight
- 10,000 lbs
- 4,536 kg
- Travel Speed, Maximum
- 9.3 mph
- 14.9 km/h
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 23 gpm
- 87 lpm
- Auxiliary Hyd. Flow, High
- 41 gpm
- 155 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,481 psi
- 24,000 kPa
- Auxiliary Hyd. Pressure, High
- 3,989 psi
- 27,503 kPa
- Controls
- Variable flow via joystick rocker switch, or continuous via console switch
- Variable flow via joystick rocker switch, or continuous via console switch
- Couplers
- Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
- Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
- Cooling System
- High efficiency side-by-side radiator and oil cooler, not stacked
- High efficiency side-by-side radiator and oil cooler, not stacked
- Quick-Attach Mounting Plate
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
- Universal standard skid steer quick attach coupler with manual or hydraulic latching pins
Engine
- Type
- Diesel, 4-cylinder, turbocharged
- Diesel, 4-cylinder, turbocharged
- Model
- Yanmar 4TNV94FHT
- Yanmar 4TNV94FHT
- Gross Power Rating
- 103.5 hp
- 77.2 kW
- Displacement
- 189.2 cu in
- 3.1 L
- Torque, Peak
- 291 ft-lb
- 395 Nm
- Cooling System Type and Capacity
- Belt driven fan on standard flow configurations, hydraulic driven fan on Plus Hydraulic configurations and anti-freeze filled radiator cooling system
- Belt driven fan on standard flow configurations, hydraulic driven fan on Plus Hydraulic configurations and anti-freeze filled radiator cooling system
- Intake Air Cleaner
- Three-stage
- Three-stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
- Track Width
- 18 in.
- 457 mm
- Length of Track on Ground
- 71 in.
- 1,803 mm
- Ground Contact Area
- 2,556 in.²
- 1.65 m²
- Drive System
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
- Undercarriage Suspension
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage
- Roller Wheels
- 24 high-density polyurethane and rubber wheels per track, wheels include sealed bearings
- 24 high-density polyurethane and rubber wheels per track, wheels include sealed bearings
Service Capacity
- Fuel Tank
- 34 gal
- 128.7 L
- DEF Capacity
- 5 gal
- 18.9 L
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 950 CCA
- 950 CCA
- Charging System
- 80 amp alternator
- 80 amp alternator
- Outlets
- 1-12 V port inside operator station
- 1-12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open Rops Base, Open Rops Premium Plus Hydraulics, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics, Forestry
- Open Rops Base, Open Rops Premium Plus Hydraulics, All Weather Cab Premium, All Weather Cab Pemium Plus Hydraulics, Forestry
- Seat
- Standard mechanical suspension seat, single sided lap bar and 2 in. wide seat belt
- Standard mechanical suspension seat, single sided lap bar and 51 mm wide seat belt
- Controls
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
- Machine Display
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
- Engine Speed Control
- Hand-operated dial, foot throttle optional
- Hand-operated dial, foot throttle optional
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- 2 fixed forward-facing LED lights; 2 adjustable rear-facing LED lights; 2 fixed red rear-facing LED lights; 1 interior light
- Standard Features
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Horn, backup alarm, roof panel, rear window, rear view camera, cup holder, two speed, standard flow, adjustable joystick, SmartAssist Remote telematics
- Optional Features
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control, hydraulic driven fan
- All weather cab with heat and air conditioning, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow aux hydraulics, air ride seat, LED side lights (Open Rops), 1/2 in. polycarbonate door, hyd Q/A, 4 pin attachment control, dual direction bucket positioning, return to position, ride control, hydraulic driven fan
