Compact Track Loader TL25RP
Compact Design Built to Deliver More in Tight Spaces

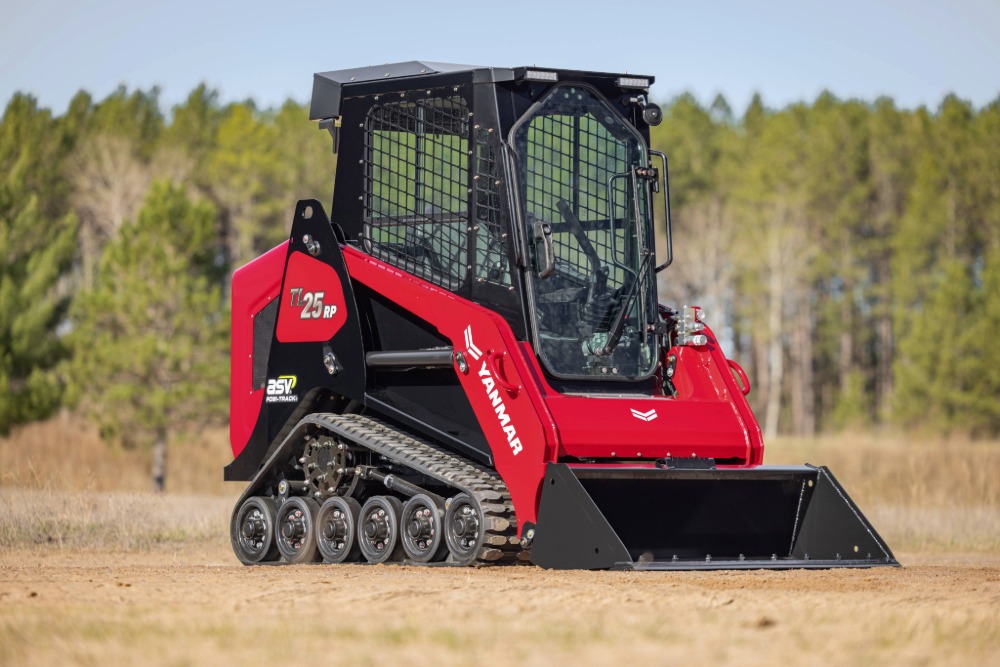

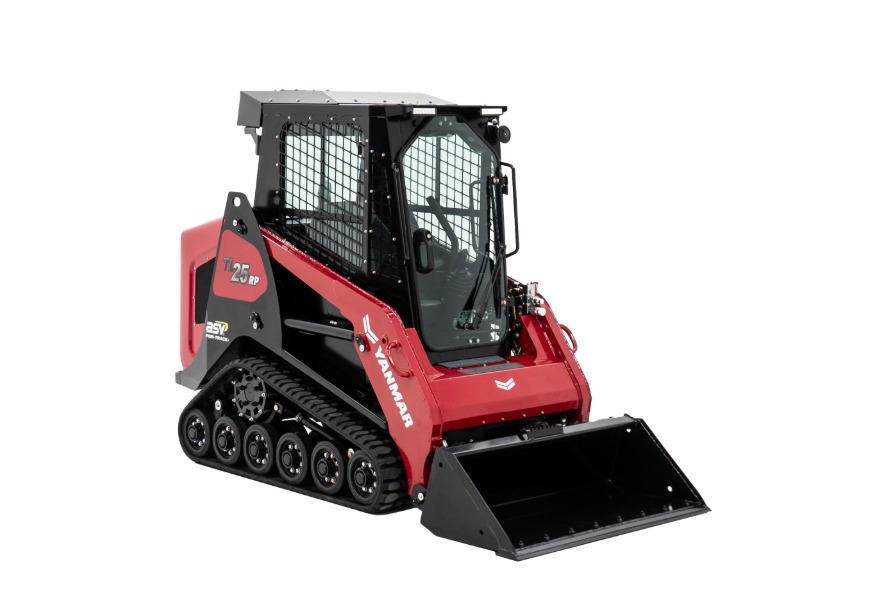

Introducing the TL25RP, the compact track loader that raises the bar on what small equipment can do. ASV Posi-Track® undercarriage technology, a compact 48″ footprint, and an operating weight of around 4,000 pounds, make getting to the job as easy as getting it done. Add an optional cold weather cab to keep working through almost anything.
The Right Size for the Right Results
-
Built Around the Operator
The seated operator station eliminates all-day standing fatigue and shields you from the elements. Upgrade to the premium configuration for a mechanical suspension seat, roof panel, and sound insulation. Everything you need to stay focused through a long shift. Large windows give you a clear sightline in every direction, keeping you aware of your surroundings from the first hour to the last.
-
Built to Perform, Easy to Maintain
A turbocharged Yanmar diesel engine produces 23.2-horsepower and 63.2-foot pounds of peak torque. With an 800-pound rated operating capacity and 2,250-pounds of breakout force, it’s built to push, dig, and move material confidently. Job after job, and season after season. When maintenance time comes, a rear-tilting hood opens to all major service points, reducing downtime and keeping the machine in the field.
-
Intuitive Control for Every Task
Separate right and left-hand pilot hydraulic joysticks manage loader and drive functions independently, with auxiliary flow available via joystick buttons or continuous console switch. The hand-operated rotary throttle gives precise engine speed management, and the 3.5-inch color display monitors RPM, temperatures, fuel level, battery voltage, and diagnostics at a glance.
Specifications
Operating Specifications
- Loader Arms
- Radial
- Radial
- Operating Weight (Open ROPS)
- 3,951 lbs
- 1,792 kg
- Operating Weight (Enclosed Cab)
- 4,073 lbs
- 1,848 kg
- Ground Pressure at Operating Weight
- 3.3 psi
- 22.75 kPa
- Rated Operating Capacity (35% of Tipping Weight)
- 800 lbs
- 363 kg
- Operating Capacity (50% of Tipping Weight)
- 1,143 lbs
- 513 kg
- Tipping Weight
- 2,285 lbs
- 1,036 kg
- Travel Speed, Maximum
- 6.9 mph
- 11.1 kph
- Breakout Force
- 2,250 lbs
- 1,021 kg
Auxiliary Hydraulic System
- Auxiliary Hyd. Flow, Standard
- 9.9 gpm
- 37.5 lpm
- Auxiliary Hyd. Pressure, Standard
- 3,000 psi
- 20,684 kPa
- Controls
- Variable flow via joystick buttons, or continuous via console switch
- Variable flow via joystick buttons, or continuous via console switch
- Couplers
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
- Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
- Cooling System
- High efficiency oil cooler beside engine radiator, not stacked
- High efficiency oil cooler beside engine radiator, not stacked
- Quick-Attach Mounting Plate
- ASV Mini-Track loader coupler with Manual Latching pins
- ASV Mini-Track loader coupler with Manual Latching pins
Engine
- Type
- Diesel, 3-cylinder, turbocharged
- Diesel, 3-cylinder, turbocharged
- Model
- YANMAR 3TNV80FT
- YANMAR 3TNV80FT
- Gross Power Rating
- 23.2 hp
- 17.1 kW
- Displacement
- 77 cu in
- 1.3 L
- Torque, Peak
- 63.2 ft-lb
- 85.7 Nm
- Cooling System Type and Capacity
- Engine-driven fan and coolant/antifreeze-filled radiator
- Engine-driven fan and coolant/antifreeze-filled radiator
- Intake Air Cleaner
- Dual stage
- Dual stage
- Emission Controls
- Meets all U.S. EPA Tier 4 final standards
- Meets all U.S. EPA Tier 4 final standards
- Standard Features
- Engine block heater
- Engine block heater
Undercarriage
- Track Type
- General purpose track with embedded co-polymer cords and all-purpose treads
- General purpose track with embedded co-polymer cords and all-purpose treads
- Track Width
- 11 in
- 279 mm
- Length of Track on Ground
- 55 in
- 1,397 mm
- Ground Contact Area
- 1,210 in²
- 0.78 m²
- Drive System
- Two hydrostatic direct drive sprockets controlled by single joystick
- Two hydrostatic direct drive sprockets controlled by single joystick
- Undercarriage Suspension
- Two independent torsion axles per undercarriage
- Two independent torsion axles per undercarriage
- Roller Wheels
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings
- Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings
Service Capacity
- Fuel Tank
- 13 gal
- 49 L
- DEF Capacity
- N/A
- N/A
Electrical System
- Nominal Charge
- 12 V
- 12 V
- Battery
- 590 CCA
- 590 CCA
- Charging System
- 55 amp alternator
- 55 amp alternator
- Outlets
- 1–12 V port inside operator station
- 1–12 V port inside operator station
- Wiring
- Pre-wired for all factory-available accessories
- Pre-wired for all factory-available accessories
Operator Station
- Cab
- Open ROPS Base (B), Cold Weather Cab (P)
- Open ROPS Base (B), Cold Weather Cab (P)
- Seat
- Vinyl seat with built-in operator presence switch, lap bar and 2 in. wide seat belt
- Vinyl seat with built-in operator presence switch, lap bar and 51 mm wide seat belt
- Controls
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
- LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
- Machine Display
- Multi-functional color 3.5 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more.
- Multi-functional color 3.5 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more.
- Engine Speed Control
- Hand-operated rotary throttle
- Hand-operated rotary throttle
- ROPS
- Meets ISO 3471
- Meets ISO 3471
- FOPS
- Meets ISO 3449
- Meets ISO 3449
- Operator Restraint Anchorage
- Meets ISO 6683 CAL OSHA 1596
- Meets ISO 6683 CAL OSHA 1596
- Illumination
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- 2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
- Standard Features
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P)
- Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P)
- Optional Features
- Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door, premium mechanical suspension seat
- Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door, premium mechanical suspension seat
